REF: 54850-TurnerDelivered to: Hull, East YorkshireDate published: 23 April 2025

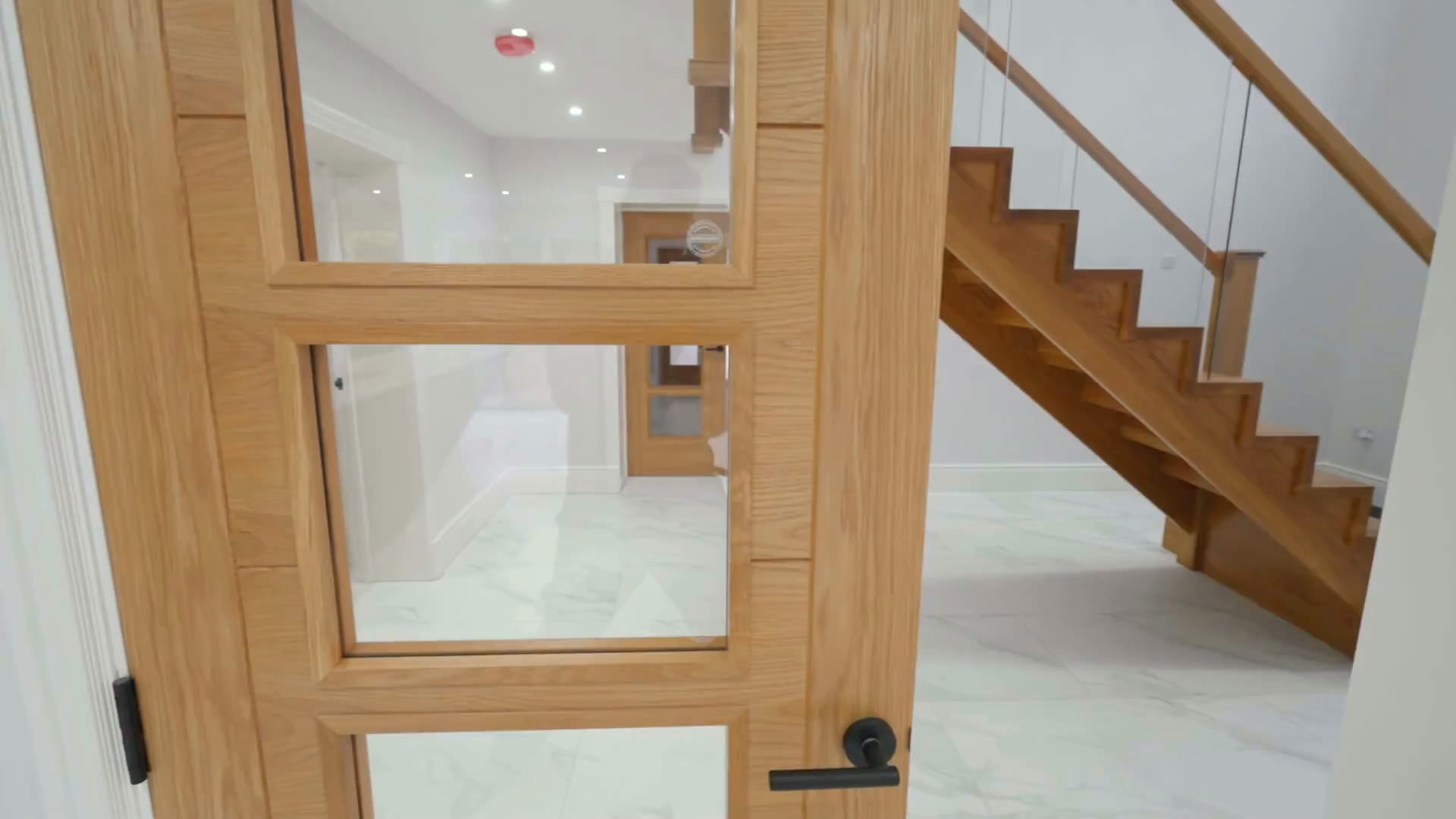

Modern exposed back cut string staircase with embedded glass.

1c7f2072-c810-4d1f-8284-37fe3e2f91b1
8f79643b-8084-470f-8490-9041dd46cc19
0a6bdee8-1d31-4952-998e-4d520bdeb352
3197321d-ddc3-46a4-a62f-04333a618a2b
775c90bc-39b3-4e01-b918-e3313dc70833
78c51b8f-0ddb-4a17-bfd6-91bbb4474081
27a6e50d-63f8-496e-976a-7ba19f9fec26
1fa55f20-c441-433a-883a-d74d7dc98ab1
29a8fd0c-921a-45f9-b46c-8425c7bef6cf
3e6662b6-2e5a-4423-8646-56003266637d
12c8a977-4714-4a2c-a100-ab124fbf979d
039f0581-dabe-4b5c-8eb7-8f1ce76dd3fe

Modern Cut String:

Cut string staircases can be described as either "modern" or "traditional".
Modern cut string stairs generally have square-edged treads, and the tread and riser overhang the string and have the same thickness.

Similar Staircases:

58146-Jenkinson:
Similar style of staircase but with black metal balusters and 90mm posts.

40824-Pearson:
Similar style of staircase. However, it features 140mm posts and "shadow" post caps.

44mm Treads & Risers:

On a cut string staircase like this, where the treads & risers overhang the string, they need to be the same thickness.

It's possible to use:

  • 22mm treads & risers.
  • 32mm treads & risers.
  • 44mm treads & risers.

We keep all these materials in stock; the thicker the material, the more expensive the staircase.

Generally, the bigger the space, the thicker the material you'll want to use to achieve a "chunkier" look. Thicker materials can also create more of a statement.

Square Feature Treads:

This staircase features two feature treads:

  • Tread one is a large curtail (square)
  • Tread two is a bullnose (square)

These allow the posts to be set back, creating a feeling of more space on the ground floor.

Given this staircase's square-edged treads and modern aesthetic, it makes sense to use square feature treads.

Glass Embedded Into A Groove:

To make the glass fit seamlessly, we groove the treads and risers suitable for glass, then supply the glass panels, which are "zig-zagged" on the bottom, ready to fit in place. Pieces of the supplied infill are used between the panels to create a gap.

115mm Posts:

The majority of staircases feature 90x90mm posts. However, in larger spaces, it can be appropriate to use larger posts.
We keep 115x115mm posts in stock and offer these on all staircases. This staircase has 115mm posts and matching 115mm pyramid caps.

Exposed Back Construction:

"Standard Construction" staircases have structural rigidity from wedges and glue blocks. However, this means the underside of the stairs has to be covered.

"Exposed Back" staircases are held together using screws which go in through the string or tread and are then covered; this means the underside can be left exposed (hence the name).
This takes longer, so there is an additional cost. Still, it can look effective if the property creates a scenario where exposing the underside would add a feature to the stairs such as this one.
